Size | 65mm |
---|---|
Degree | 88º |

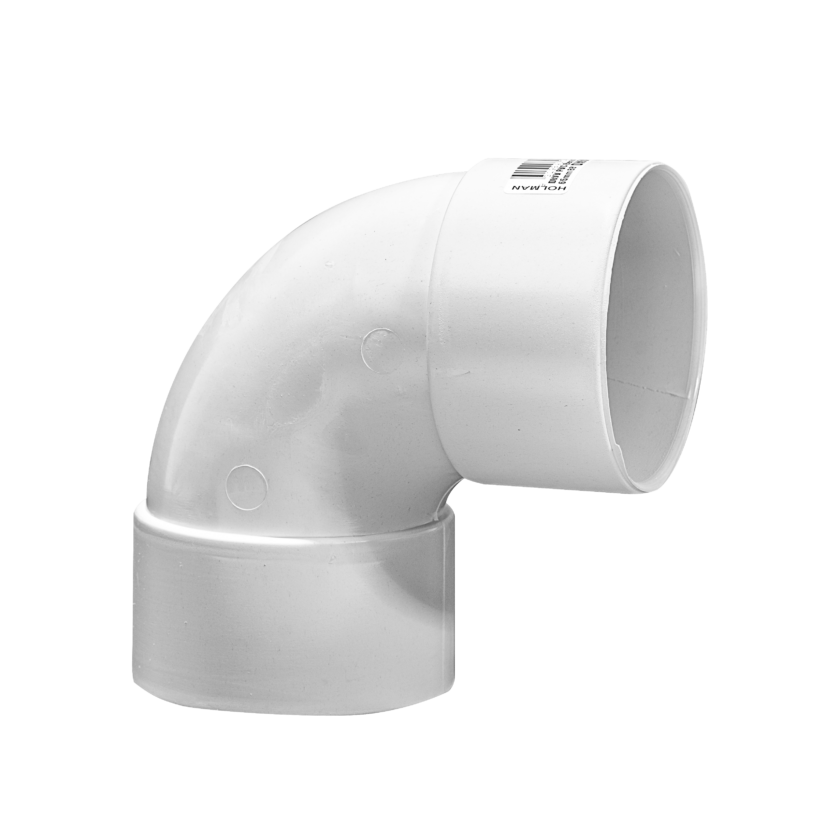

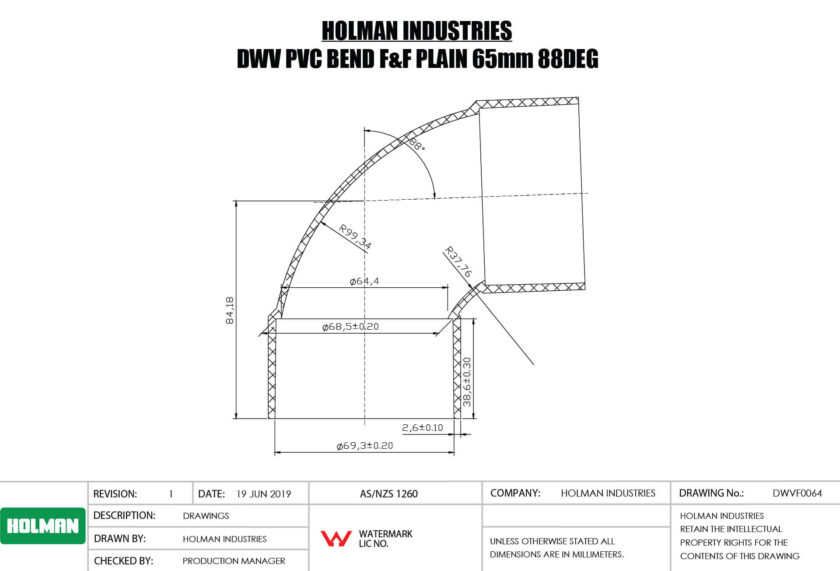

DWV PVC BEND PLAIN – 65mm, 88º, F&F
DWVF0045 | DWVF0046 | DWVF0050 | DWVF0052 | DWVF0054 | DWVF0056 | DWVF0058 | DWVF0060 | DWVF0062 | DWVF0064 | DWVF0066 | DWVF0068 | DWVF0070 | DWVF0072 | DWVF0074 | DWVF0076 | DWVF0078
ELBMD150X5 | ELBSEW150X15 | ELBSEW150X22 | ELBMD150X30 | ELBMD150X45 | ELBSEW150X60 | ELBMD150X90 | ELBSEW225X5 | ELBMD225x15 | ELBSEW225X22 | ELBSEW225X30 | ELBMD225X45 | ELBSEW225X60 | ELBMD225X88 | ELBSEW225X60 | ELBMD225X88 | ELBMSEW300X5 | ELBMSEW300X15 | ELBMSEW300X22 | ELBSEW300X30 | ELBMD300X45 | ELBMSEW300X60 | ELBMD300X88 | ELBMSEW375X5 | ELBMSEW375X15 | ELBSEW375X22 | ELBSEW375X30 | ELBSEW375X45 | ELBSEW375X60 | ELBSEW375X90
The Holman Female & Female Plain bend is for sewer & vent use. Connect pipe with solvent cement. Complies with AS/NZS1260. (Drain Waste Vent) systems remove waste water from showers, sinks, toilets and floor drains.
Size: 65mm | |
Degree: 88º |
Code | Description | Bag | Box | |
---|---|---|---|---|
![]() | DWVF0045 | 32mm 45º | 10 | 180 |
![]() | DWVF0046 | 32mm 88º | 10 | 120 |
![]() | DWVF0050 | 40mm 15º | 5 | 80 |
![]() | DWVF0052 | 40mm 45º | - | 100 |
![]() | DWVF0054 | 40mm 88º | - | 80 |
![]() | DWVF0056 | 50mm 15º | 5 | 40 |
![]() | DWVF0058 | 50mm 45º | - | 55 |
![]() | DWVF0060 | 50mm 88º | - | 40 |
![]() | DWVF0062 | 65mm 45º | 10 | 100 |
![]() | DWVF0064 | 65mm 88º | - | 60 |
![]() | DWVF0066 | 80mm 45º | 5 | 70 |
![]() | DWVF0068 | 80mm 88º | 5 | 40 |
![]() | DWVF0070 | 100mm 5º | - | 42 |
![]() | DWVF0072 | 100mm 15 | - | 35 |
![]() | DWVF0074 | 100mm 30 | - | 35 |
![]() | DWVF0076 | 100mm 45 | - | 32 |
![]() | DWVF0078 | 100mm 88 | - | 19 |
![]() | ELBMD150X5 | 150mm 5º | - | 12 |
![]() | ELBSEW150X15 | 150mm 15º (F) | - | - |
![]() | ELBSEW150X22 | 150mm 22º (F) | - | - |
![]() | ELBMD150X30 | 150mm 30º | - | 12 |
![]() | ELBMD150X45 | 150mm 45º | - | 12 |
![]() | ELBSEW150X60 | 150mm 60º (F) | - | - |
![]() | ELBMD150X90 | 150mm 88º | - | 8 |
![]() | ELBSEW225X5 | 225mm 5º (F) | - | - |
![]() | ELBMD225x15 | 225mm 15º (F) | - | - |
![]() | ELBSEW225X22 | 225mm 22º (F) | - | - |
![]() | ELBSEW225X30 | 225mm 30º (F) | - | - |
![]() | ELBMD225X45 | 225mm 45º | - | 4 |
![]() | ELBSEW225X60 | 225mm 60º (F) | - | - |
![]() | ELBMD225X88 | 225mm 88º | - | 4 |
![]() | ELBSEW300X5 | 300mm 5º (F) | - | - |
![]() | ELBSEW300X15 | 300mm 15º (F) | - | - |
![]() | ELBSEW300X22 | 300mm 22º (F) | - | - |
![]() | ELBSEW300X30 | 300mm 30º (F) | - | - |
![]() | ELBSEW300X45 | 300mm 45º (F) | - | - |
![]() | ELBSEW300X60 | 300mm 60º (F) | - | - |
![]() | ELBSEW300X90 | 300mm 90º (F) | - | - |
![]() | ELBSEW375X5 | 375mm 5º (F) | - | - |
![]() | ELBSEW375X15 | 375mm 15º (F) | - | - |
![]() | ELBSEW375X22 | 375mm 22º (F) | - | - |
![]() | ELBSEW375X30 | 375mm 30º (F) | - | - |
![]() | ELBSEW375X45 | 375mm 45º (F) | - | - |
![]() | ELBSEW375X60 | 375mm 60º (F) | - | - |
![]() | ELBSEW375X90 | 375mm 90º (F) | - | - |
Tech Sheet 5°
![Bend F&F Plain](/wp-content/uploads/2019/05/DWVF0070-300x300.png)
Tech Specs
- Model Name: DWV PVC Bend F&F Plain 100mm 5°
- Angle: 5°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
DWVF0070 | 100mm 5º | 5° | 100mm | W:125 H:150 L:150 | 0.22kg |
ELBMD150X5 | 150mm 5° | 5° | 150mm | – | 0.6kg |
ELBSEW225X5 | 225mm 5° | 5° | 225mm | – | – |
ELBSEW300X5 | 300mm 5° | 5° | 300mm | – | – |
ELBSEW375X5 | 375mm 5° | 5° | 375mm | – | – |
Tech Sheet 15°
![Bend F&F Plain](/wp-content/uploads/2019/05/DWVF0050-300x300.png)
Tech Specs
- Model Name: DWV PVC Bend F&F Plain 40mm 15°
- Angle: 15°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
DWVF0050 | 40mm 15° | 15° | 40mm | W:48 H:60 L:75 | 0.04kg |
DWVF0056 | 50mm 15° | 15° | 50mm | W:60 H:70 L:70 | 0.06kg |
DWVF0072 | 100mm 15° | 15° | 100mm | W:125 H:150 L:150 | 0.24kg |
ELBSEW150X15 | 150mm 15° | 15° | 150mm | – | – |
ELBMD225x15 | 225mm 15° | 15° | 225mm | – | – |
ELBSEW300X15 | 300mm 15° | 15° | 300mm | – | – |
ELBSEW375X15 | 375mm 15° | 15° | 375mm | – | – |
Tech Sheet 22°
![Bend F&F Plain](/wp-content/uploads/2019/07/ELBMD-placeholder-300x300.jpg)
Tech Specs
- Model Name: DWV Fabfit Bend F&F Plain 150mm 22° (F)
- Angle: 22°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
ELBSEW150X22 | 150mm 22° | 22° | 150mm | – | – |
ELBSEW225X22 | 225mm 22° | 22° | 225mm | – | – |
ELBSEW300X22 | 300mm 22° | 22° | 300mm | – | – |
ELBSEW375X22 | 375mm 22° | 22° | 375mm | – | – |
Tech Sheet 30°
![Bend F&F Plain](/wp-content/uploads/2019/05/DWVF0074-300x300.png)
Tech Specs
- Model Name: DWV PVC Bend F&F Plain 100mm 30° (F)
- Angle: 30°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
DWVF0074 | 100mm 30° | 30° | 100mm | W:125 H:140 L:140 | 0.26kg |
ELBMD150X30 | 150mm 30° | 30° | 150mm | – | 0.71kg |
ELBSEW225X30 | 225mm 30° | 30° | 225mm | – | – |
ELBSEW300X30 | 300mm 30° | 30° | 300mm | – | – |
ELBSEW375X30 | 375mm 30° | 30° | 375mm | – | – |
Tech Sheet 45°
![Bend F&F Plain](/wp-content/uploads/2019/05/DWVF0045-300x300.png)
Tech Specs
- Model Name: DWV PVC Bend F&F Plain 32mm 45°
- Angle: 45°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
DWVF0045 | 32mm 45° | 45° | 32mm | – | 0.04kg |
DWVF0052 | 40mm 45° | 45° | 40mm | W:50 H:85 L:85 | 0.05kg |
DWVF0058 | 50mm 45° | 45° | 50mm | W:60 H:100 L:100 | 0.07kg |
DWVF0062 | 65mm 45° | 45° | 65mm | W:95 H:120 L:120 | 0.11kg |
DWVF0066 | 80mm 45° | 45° | 80mm | W:90 H:130 L:90 | 0.15kg |
DWVF0076 | 100mm 45° | 45° | 100mm | W:120 H:160 L:160 | 0.3kg |
ELBMD150X45 | 150mm 45° | 45° | 150mm | – | 0.78kg |
ELBMD225X45 | 225mm 45° | 45° | 225mm | – | 2.83kg |
ELBMD300X45 | 300mm 45° | 45° | 300mm | – | 6.18kg |
ELBSEW375X45 | 375mm 45° | 45° | 375mm | – | – |
Tech Sheet 60°
![Bend F&F Plain](/wp-content/uploads/2019/07/ELBMD-placeholder-300x300.jpg)
Tech Specs
- Model Name: DWV Fabfit Bend F&F Plain 150mm 60° (F)
- Angle: 60°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
ELBSEW150X60 | 150mm 60° | 60° | 150mm | – | – |
ELBSEW225X60 | 225mm 60° | 60° | 225mm | – | – |
ELBSEW300X60 | 300mm 60° | 60° | 300mm | – | – |
ELBSEW375X60 | 375mm 60° | 60° | 375mm | – | – |
Tech Sheet 88°
![Bend F&F Plain](/wp-content/uploads/2019/05/DWVF0046-300x300.png)
Tech Specs
- Model Name: DWV PVC Bend F&F Plain 32mm 88°
- Angle: 88°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
DWVF0046 | 32mm 88° | 88° | 32mm | – | 0.04kg |
DWVF0054 | 40mm 88° | 88° | 40mm | – | 0.06kg |
DWVF0060 | 50mm 88° | 88° | 50mm | W:60 H:100 L:100 | 0.1kg |
DWVF0064 | 65mm 88° | 88° | 65mm | W:75 H:115 L:130 | 0.15kg |
DWVF0068 | 80mm 88° | 88° | 80mm | W:90 H:140 L:90 | 0.23kg |
DWVF0078 | 100mm 88° | 88° | 100mm | – | 0.46kg |
ELBMD150X90 | 150mm 88° | 88° | 150mm | – | 1.42kg |
ELBMD225X88 | 225mm 88° | 88° | 225mm | – | 4.83kg |
ELBMD300X88 | 300mm 88° | 88° | 300mm | – | 8.71kg |
Tech Sheet 90°
![Bend F&F Plain](/wp-content/uploads/2019/07/ELBMD-placeholder-300x300.jpg)
Tech Specs
- Model Name: DWV Fabfit Bend F&F Plain 375mm 90° (F)
- Angle: 90°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
ELBSEW375X90 | 375mm 90° | 90° | 375mm | – | – |
