Additional information
| Size | 100x50mm |
|---|---|
| Degree | 45º |

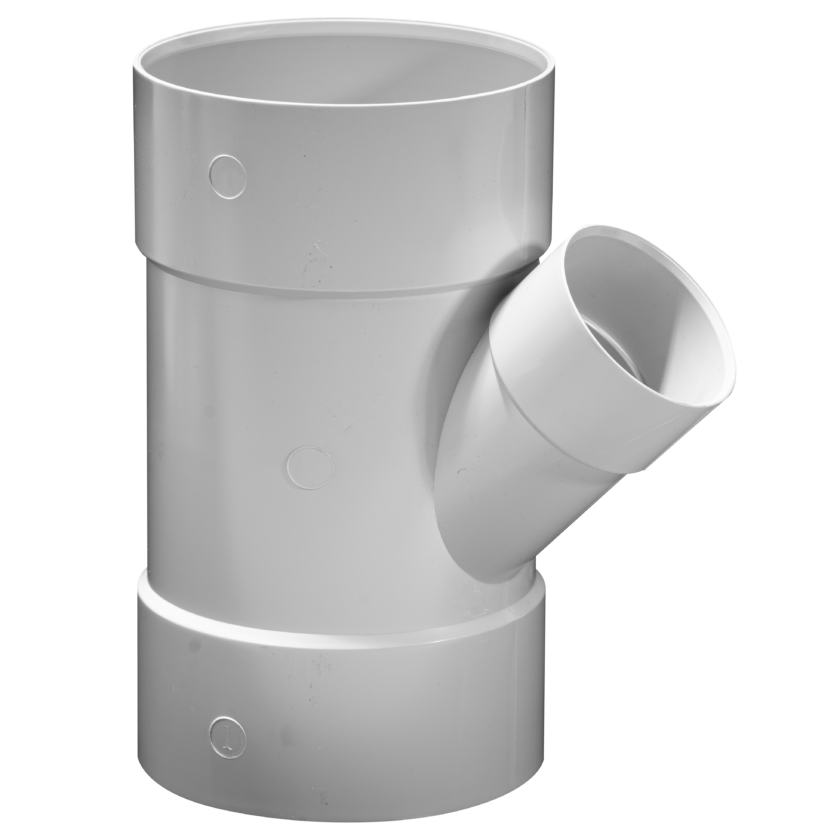

DWV PVC JUNCTION PLAIN – 100X50mm, 45º
DWVF0336 | DWVF0338 | DWVF0340 | DWVF0342 | DWVF0344 | DWVF0346 | DWVF0348 | DWVF0350 | DWVF0352 | DWVF0354

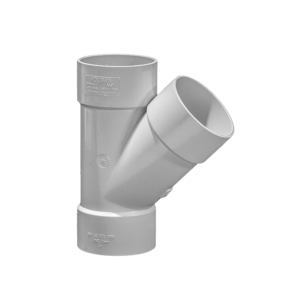

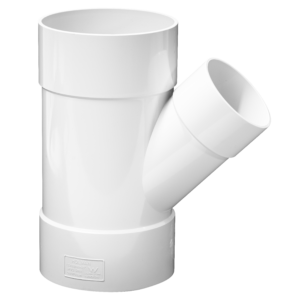

The Holman DWV PVC Female And Female Plain Junction is for sewer, vent and drainage use. Connect pipe with solvent cement. Manufactured to Australian Standards.
| Size: 100x50mm | |
| Degree: 45º |
Reviews
| Code | Description | Bag | Box | |
|---|---|---|---|---|
 | DWVF0336 | 32mm 45º | 10 | 80 |

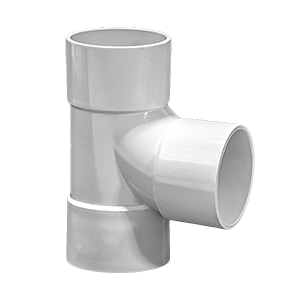

 | DWVF0338 | 32mm 88º | 10 | 80 |

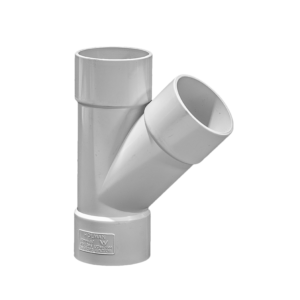

 | DWVF0340 | 40mm 45º | 5 | 40 |

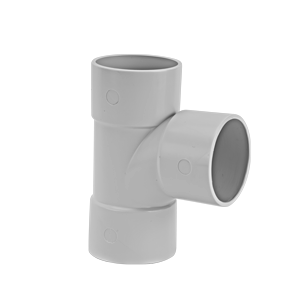

 | DWVF0342 | 40mm 88º | 5 | 50 |
 | DWVF0344 | 50mm 45º | 5 | 40 |

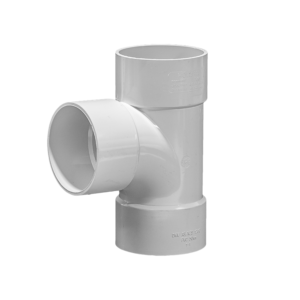

 | DWVF0346 | 50mm 88º | - | 50 |

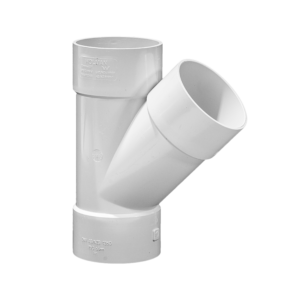

 | DWVF0348 | 65mm 45º | 5 | 35 |

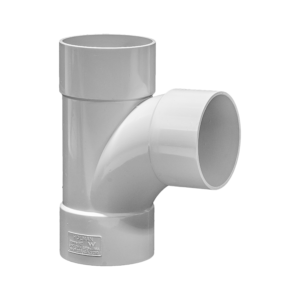

 | DWVF0350 | 65mm 88º | 5 | 45 |

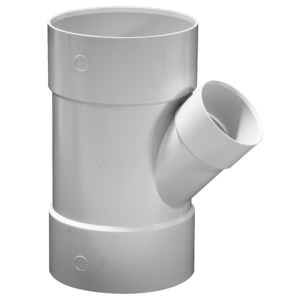

 | DWVF0352 | 100x50mm 45º | - | 24 |
 | DWVF0354 | 100x65mm 45º | - | 24 |
Tech Sheet 45º
Tech Specs
- Model Name: DWV PVC Junction Plain 32mm 45°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| DWVF0336 | 32mm | 45° | 32mm | – | 0.08kg |
| DWVF0340 | 40mm | 45° | 40mm | W:43 H:129 L:43 | 0.08kg |
| DWVF0344 | 50mm | 45° | 50mm | W:60 H:120 L:150 | 0.15kg |
| DWVF0348 | 65mm | 45° | 65mm | W:75 H:150 L:185 | 0.26kg |
| DWVF0352 | 100x50mm | 45° | 100x50mm | – | 0.49kg |
| DWVF0354 | 100x65mm | 45° | 100x65mm | – | 0.51kg |
Tech Sheet 88º
Tech Specs
- Model Name: DWV PVC Junction Plain 32mm 88°
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| DWVF0338 | 32mm | 88° | 32mm | – | 0.06kg |
| DWVF0340 | 40mm | 88° | 40mm | W:46 H:127 L:103 | 0.08kg |
| DWVF0346 | 50mm | 88° | 50mm | W:60 H:110 L:140 | 0.13kg |
| DWVF0350 | 65mm | 88° | 65mm | W:78 H:155 L:175 | 0.24kg |
