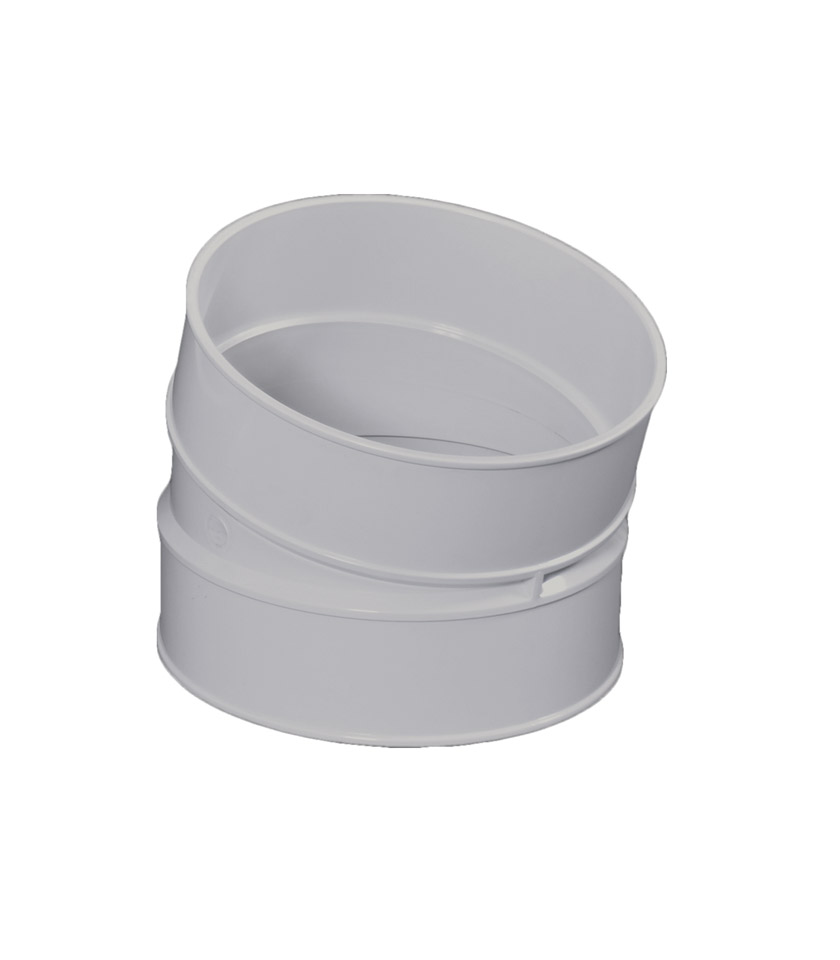

STORM PVC ELBOW F&F – 150mm, 15º, F&F

The Holman PVC Elbow Female & Female is for use with Stormwater pipes. Our fittings are designed with a high impact strength which helps prevent damage during handling and installation. All parts assemble easily using solvent cement. Suitable for above and below ground applications. Watermarked approved meaning the products have been independently assessed as quality products. Complies with AS/NZS1254. Made from quality recycled PVC.

Size: 150mm	75mm 150mm 225mm 300mm 375mm
Degree: 15º	5º 10º 15º 22º 22.5º 30º 45º 60º 90º

SKUELBM150X15 CategoryStormwater Fittings TagPVC Elbow

Additional information
Reviews

Additional information

Size	150mm
Degree	15º

Reviews

Code	Description	Bag	Box
SWF0410	75mm 22.5º	10	130
SWF0420	75mm 45º	10	110
SWF0430	75mm 90º	-	90
SWF0440	90mm 15º	-	90
SWF0450	90mm 22.5º	-	90
SWF0468	90mm 88º	-	60
SWF0460	90mm 45º	-	80
SWF0470	90mm 90º	-	60
SWF0475	90mm 90º Smooth	-	60
ELBM150X5	150mm 5º	18	-
ELBM150X15	150mm 15º	18	-
ELBSEW150X22	150mm 22º (F) DWV Quality	-	-
ELBM150X30	150mm 30º	18	-
ELBM150X45	150mm 45º	18	-
ELBSW150X60	150mm 60º (F)	-	-
ELBM150X90	150mm 90º	16
ELBSW225X5	225mm 5º (F)	-	-
ELBSW225X10	225mm 10º (F)	-	-
ELBM225X15	225mm 15º	4	-
ELBSW225X22	225mm 22º (F)	-	-
ELBSW225X30	225mm 30º (F)	-	-
ELBM225X45	225mm 45º	4	-
ELBM225X88/90	225mm 88/90º	4	-
ELBSW300X5	300mm 5º (F)	-	-
ELBSW300X15	300mm 15º (F)	-	-
ELBSW300X22	300mm 22º (F)	-	-
ELBSW300X30	300mm 30º (F)	-	-
ELBM300X45	300mm 45º	4	-
ELBSW300X60	300mm 60º (F)	-	-
ELBM300X90	300mm 90º	2	-
ELBSW375X5	375mm 5º (F)	-	-
ELBSW375X15	375mm 15º (F)	-	-
ELBSW375X22	375mm 22º (F)	-	-
ELBSW375X30	375mm 30º (F)	-	-
ELBSW375X45	375mm 45º (F)	-	-
ELBSW375X60	375mm 60º (F)	-	-
ELBSW375X90	375mm 90º (F)	-	-

Tech Sheet 5°

Tech Specs

Model Name: Storm Fabfit Bend F&F 150mm 5°
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
ELBM150X5	150mm 5°	5°	100mm	–	0.6kg
ELBSW225X5	225mm 5° (F)	5°	225mm		–
ELBSW300X5	300mm 5° (F)	5°	225mm		–
ELBSW375X5	375mm 5° (F)	5°	225mm		–

Tech Sheet 10°

Tech Specs

Model Name: Storm Fabfit Bend F&F 225mm 10° (F)
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
ELBSW225X10	225mm 10° (F)	10°	225mm	–	–

Tech Sheet 15°

Tech Specs

Model Name: Storm PVC Elbow F&F 90mm 15°
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
SWF0440	90mm 15°	15°	90mm	W:95 H:120 L:120	0.08kg
ELBM150X15	150mm 15°	15°	150mm	–	0.45kg
ELBM225X15	225mm 15°	15°	225mm	–	1.56kg
ELBSW300X15	300mm 15° (F)	15°	300mm	–	–
ELBSW375X15	375mm 15° (F)	15°	375mm	–	–

Tech Sheet 22°

Tech Specs

Model Name: DWV Fabfit Bend F&F Plain 150mm 22° (F)
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
ELBSEW150X22	150mm 22° (F) DWV Quality	22°	150mm	–	–
ELBSW225X22	225mm 22° (F)	22°	225mm	–	–
ELBSW300X22	300mm 22° (F)	22°	300mm	–	–
ELBSW375X22	375mm 22° (F)	22°	375mm	–	–

Tech Sheet 22.5°

Tech Specs

Model Name: Storm PVC Elbow F&F 75mm 22.5°
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
SWF0410	75mm 22.5°	22.5°	75mm	W:80 H:95 L:80	0.06kg
SWF0450	90mm 22.5°	22.5°	90mm	W:95 H:120 L:120	0.08kg

Tech Sheet 30°

Tech Specs

Model Name: Storm Fabfit Bend F&F 150mm 30°
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
ELBM150X30	150mm 30°	30°	150mm	–	0.71kg
ELBSW225X30	225mm 30° (F)	30°	225mm	–	–
ELBSW300X30	300mm 30° (F)	30°	300mm	–	–
ELBSW375X30	375mm 30° (F)	30°	375mm	–	–

Tech Sheet 45°

Tech Specs

Model Name: Storm PVC Elbow F&F 75mm 45°
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
SWF0420	75mm 45°	45°	75mm	W:80 H:127 L:95	0.06kg
SWF0460	90mm 45°	45°	90mm	W:95 H:95 L:140	0.1kg
ELBM150X45	150mm 45°	45°	150mm	–	0.52kg
ELBM225X45	225mm 45°	45°	225mm	–	1.84kg
ELBM300X45	300mm 45°	45°	300mm	–	4.07kg
ELBM375X45	375mm 45°	45°	375mm	–	–

Tech Sheet 60°

Tech Specs

Model Name: Storm Fabfit Bend F&F 150mm 60° (F)
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
ELBSW150X60	150mm 60° (F)	60°	150mm	–	–
ELBSW300X60	300mm 60° (F)	60°	300mm	–	–
ELBSW375X60	375mm 60° (F)	60°	375mm	–	–

Tech Sheet 90°

Tech Specs

Model Name: Storm PVC Elbow F&F 75mm 90°
Colour: Grey
Connection: Yes
Material: Poly Vinyl Chloride – PVC
Certification: AS/NZS1254

Code	Description	Angle	Size	Dimensions	Weight
SWF0430	75mm 90°	90°	75mm	W:80 H:90 L:90	0.08kg
SWF0468	90mm 88°	90°	90mm	W:95 H:95 L:140	0.13kg
SWF0470	90mm 90°	90°	90mm	W:95 H:95 L:140	0.13kg
SWF0475	90mm 90° Smooth	90°	90mm	W:95 H:110 L:140	0.15kg
ELBM150X90	150mm 90°	90°	150mm	–	0.67kg
ELBM225X88/90	225mm 88/90°	88/90°	225mm	–	2.55kg
ELBM300X90	300mm 90°	90°	300mm	–	–
ELBM375X90	375mm 90° (F)	90°	375mm	–	–
